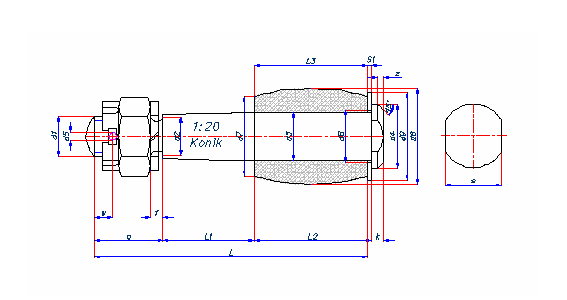

COUPLINGS >> COUPLINGS, PERNO and RUBBERS (RUPEX BARREL TYPE)
LAW No.
PERNO
RUBBER FERRULE

d1
d2
d3
d4
d5
L
a
L1
L2
f
w
k
z
s
d3
d6
d7
L3
98216
M8
6
9
12
2
50
12.5
16.5
21
2.5
3
2
1
10
9
18
15
20
97097
M10
7.5
12
16
2
65
13.5
22.5
29
3
3
3
1.5
14
12
24
20
28
97100
M12
9.5
17
22
3
82
16
28
38
4
4
3
1.5
19
17
34
38
36
98235
M18
14
22
28
4
105
21.5
35.5
48
5
5
4
2
34
22
44
34
46
98238
M24
19
30
38
5
133
27
45
61
6
6.5
5
2
32
30
60
51
58
98227
M30
24
38
48
6
154
33
51
70
8
8
6
2
41
38
76
64
67
98236
M36x3
31
48
58
6
182
34
63
85
6
8
7
2
50
48
96
80
82
97090
M42 x3
37
58
70
8
223
39
79
105
6
10
9
3
60
58
116
98
102
COUPLING LIST

LAW NO
ORJ.NO
97013
2 NO
97014
3 NO
97015
4 NO
97016
5 NO
97017
6 NO
97018
7 NO

WE CAN DO SPECIAL PRODUCTION REQUESTED DIMENSIONS.
